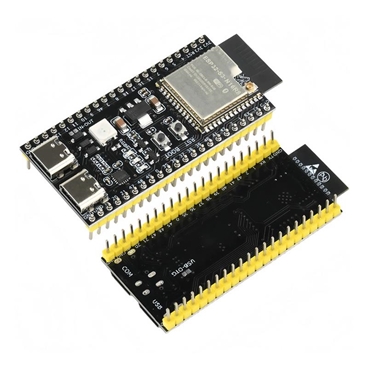

ESP32-S3-DevKitC-1 Development Board BT 2.4G Wifi Module

Features:

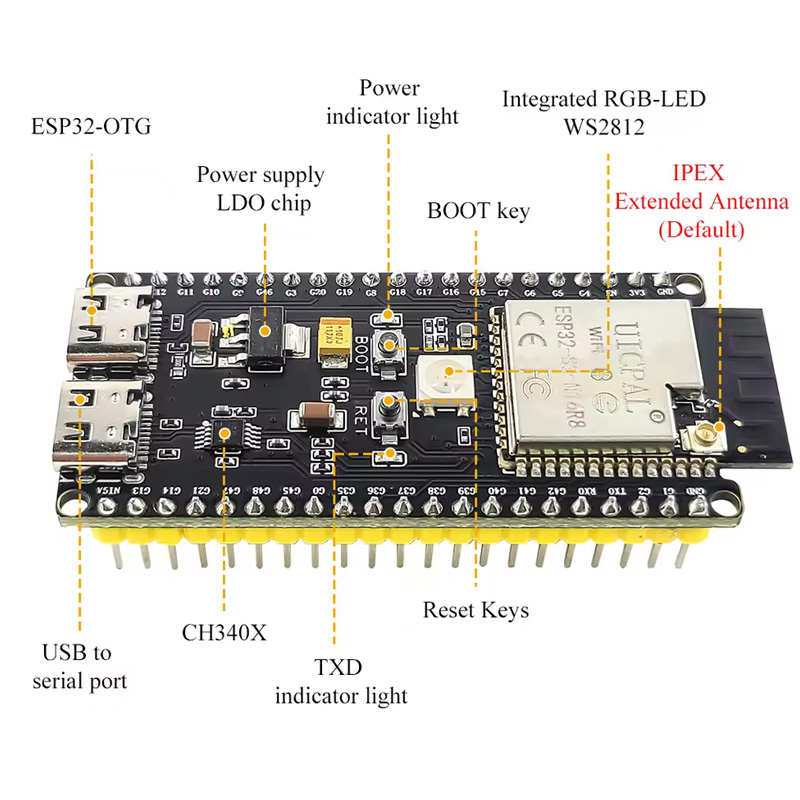

1.High Performance: Built around the ESP32-S3-WROOM-1 core board, this development board offers numerous IO ports and an on-board WS2818RGB corresponding to IO48. It provides a reliable for development board solution for complex projects.

2.Dual Type-C Interfaces: Equipped with two Type-C interfaces, one marked COM is readily usable, while the other USB can function via OTG or by pressing BOOT upon power-up to display ports for program downloading. It acts as a convenient for expansion board connection.

3.WiFi-Based RGB Control: Integrated with RGB that automatically lights up when connected to WiFi and turns off when disconnected, enhancing visual feedback and functionality for core board users.

4.Versatile Programming Options: This development board supports flexible programming choices, allowing users to easily implement various applications by utilizing its sturdy features.

5.Comprehensive Application Support: Designed to cater to a broad range of applications, this development board ensures seamless integration with different systems for maximum adaptability.


Specification:
Model: S3-N8R2 without soldering, S3-N16R8 without soldering, S3-N16R8 with soldering (optional)
Working voltage: 3.3-5V

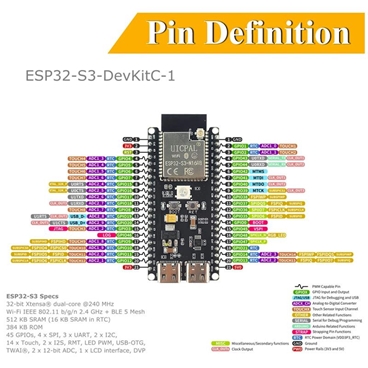

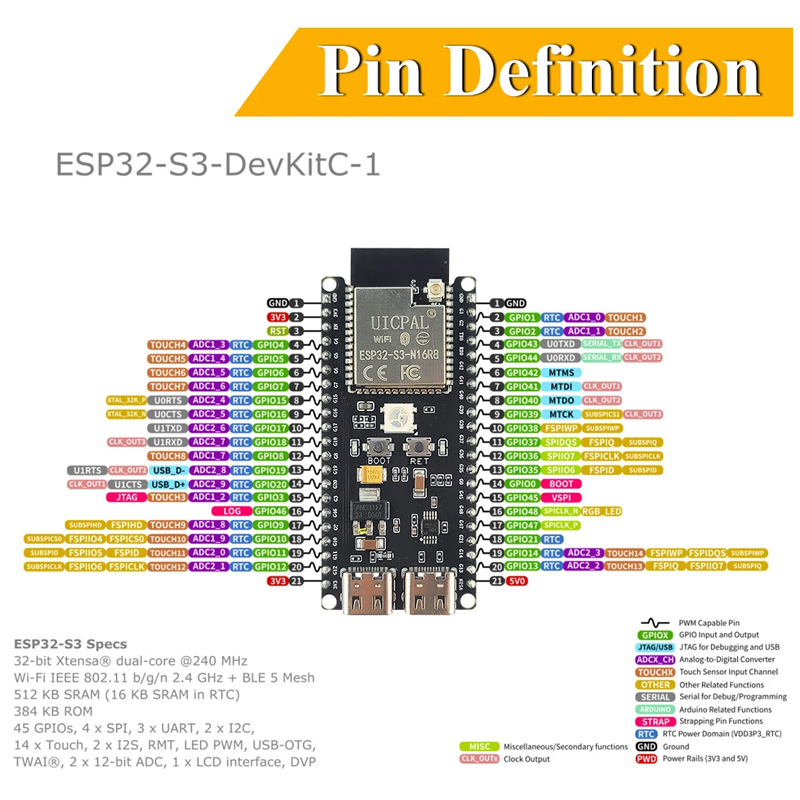

IO port: 36 IOs
N16R8
Flash: 16M
PSRAM: 8M

N8R2
Flash: 8M
PSRAM: 2M
2 I2C, 4 SPI interfaces
Onboard size: 57x28x4mm (excluding protruding parts)
Product size: 57.00x28.00x4.00mm/2.24x1.1x0.16inch
Note: Do not short-circuit the pins, which may burn the module.

Package includes:

1 X ESP32-S3-DevKitC-1 Development Board BT 2.4G Wifi Module

Note: all the descriptions and prices are subject to change without prior notice.
